NVIDIA Edge AI Box

As an NVIDIA Preferred Partner, EverFocus delivers the Edge AI Series, combining the full NVIDIA Jetson™ lineup with rugged, certified hardware to accelerate edge AI applications. From Jetson Orin™ with Super Mode for industrial inference to Jetson Thor™ modules for humanoid robotics and physical AI, these platforms are engineered for speed, adaptability, and faster deployment. With support for ODM customization, hardware/software integration, and AI model optimization, the Edge AI Series helps industries reduce complexity and bring AI to the edge more efficiently.

Built for real-world environments, the Edge AI Series enables customers to simulate, train, and infer directly at the edge. With in-vehicle features, 5G/4G/LTE, Wi-Fi, Bluetooth, GPS, and storage expansion via M.2 PCIe NVMe SSD and Micro SD, these systems power applications in robotics, intelligent transportation, surveillance, and smart industries.

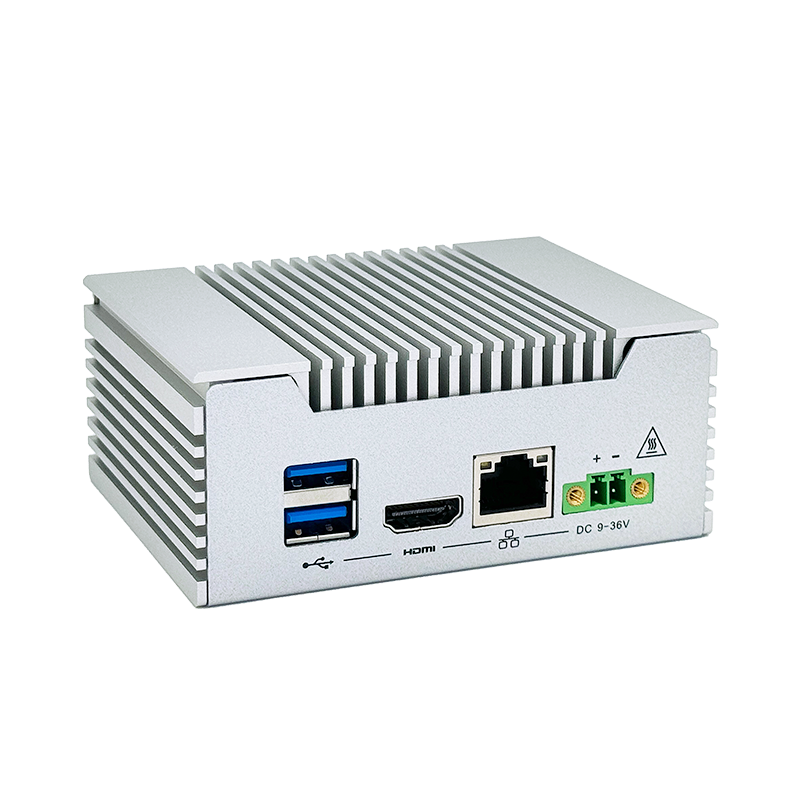

The XDN-10N1 is an ultra compact fanless embedded edge AI system and industrial mini PC designed for industrial AI, edge computing, and real-time data collection applications. Powered by NVIDIA Jetson Orin Nano Super Mode, it provides a compact AI computing platform for developers, system integrators, and industrial automation teams that need reliable AI inference at the edge.
With GbE LAN, USB 3.2, serial ports, HDMI, and a wide 9 to 36 VDC power input, the XDN-10N1 can connect with cameras, sensors, controllers, and industrial devices in space-limited environments. Its compact fanless design makes it suitable for edge AI applications where low maintenance, stable operation, and flexible installation are important.

Suitable for:
AI inference
Industrial IoT gateway deployment
Data collection and edge processing
Compact embedded box PC applications
Machine vision
Factory automation
Smart retail analytics
Traffic monitoring
Industrial mini PC / small form factor edge computing
Intelligent surveillance

Specification
System
CPU/GPU
NVIDIA® Jetson Orin Nano™ 6-core Arm® Cortex®-A78AE v8.2 64-bit CPU
Storage
1 x M.2 M-Key 2242, support NVMe
Real time clock
Yes
Indicators
1 x LED indicator (Power)
Operating system
Linux (NVIDIA JetPack 6.0 and above)
Power Supply
Power Requirement
9 ~ 36 VDC
Power Consumption
Max 65W (TBC)
Environmental and Mechanical
Dimension
100 x 76 x 42 mm
Weight
0.3 kg
Mouting/Installation
Din Rail
Operating Temperature
-20 ~ 60 °C (-4 ~ 140 °F)
Storge Temperature
-40 ~ 85 °C (-40 ~ 176 °F)
Operating Humidity
10% ~ 95% relative humidity, non-condensing
Certification
Regulations
CE, FCC
Carrier
Planning
Interface
Serial Port
2 x RS-232/485 switchable
Ethernet
1 x GbE LAN, RJ45
USB
2 x USB 3.2 Gen1, Type-A
Display
1 x HDMI 2.0-Out
Power Connector
2-pin Terminal Block
Debug Port
1 x Micro USB for console
Expansion Slot
1 x MIPI CSI-2 with FPC connector
