Product Features
- 01.The integration of parking detectors and indicators greatly reduces material costs and construction costs, and also shorters the construction period;
- 02.Using two independent ultrasonic circuit design, large detection area, independent work, greatly improve the detector life and reliability;
- 03.Advanced intelligent learning anti-jamming algorithm is adopted to solve the interference of lane, side vehicle and counter shooting, and the detection accuracy rate is more than 99%;
- 04.The parking status indicator adopts bright LED lamp bead design, low power consumption, long service life, lamp bead can have wide viewing Angle and long viewing distance;
- 05.The detector is installed on the bridge above the front of each parking space, effectively avoiding the obstruction of the column, and the installation effect is more orderly and beautiful;
- 06.The whole through strict static electricity, lightning and surge, group pulse and other tests, effectively ensure the reliable use of equipment;
- 07.Mobile APP debugging, address automatic superposition, one-click parameter configuration, improve debugging efficiency.
- 08.Seven-color LED display can customize the color of the indicator under the empty parking space according to the needs of the parking lot.
- 09.Support remote upgrade.

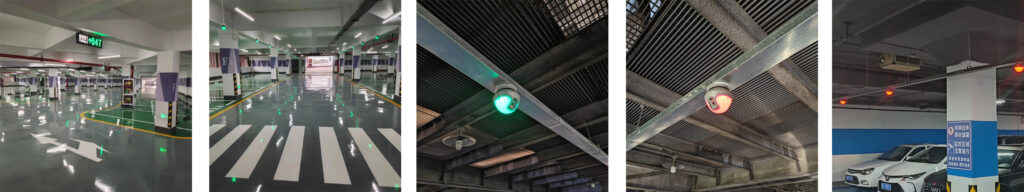

Case Photos
——————————————————————————————————————————–
| Model | WBP-T02F | Operating voltage | DC 10~28V（Rated 24V） |

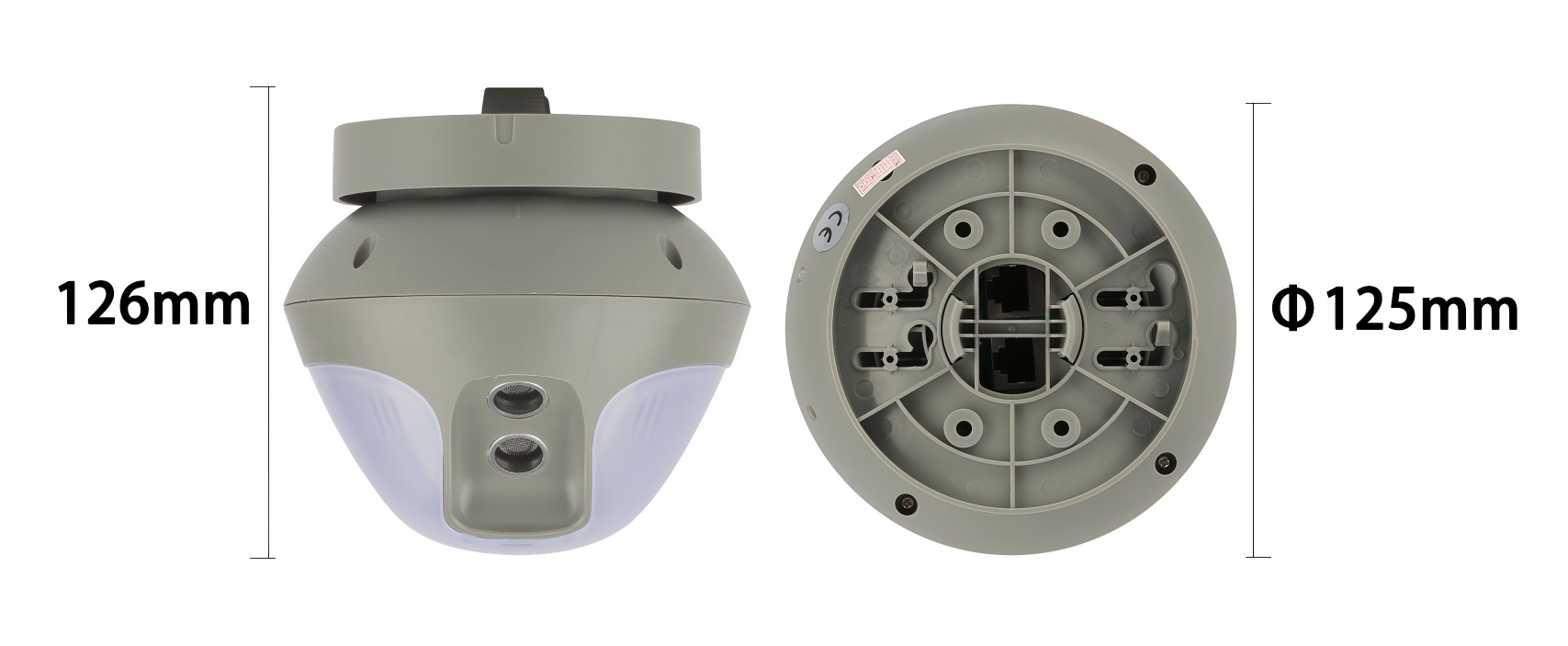

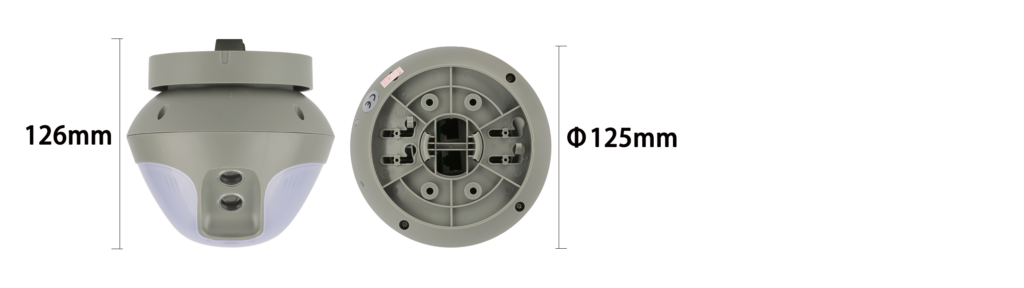

| Size | φ126*125mm | Operating temperature | -20℃ ~ +65℃ |
| Appearance material | Gray ABS engineering plastic | Ambient Humidity | 40%~70%RH |
| NW | 180g | Response time after parking | < 2s |
| Indicator type | 7 color high light LED | Range detection error | 2cm |
| Installation site | Level 3.9~4.2m(away from the stop line) | Communication mode | RS485 |
| Vertical 2 ~ 3m (recommended 2.5-2.8m) | Communication interface | 2*RJ45 port | |
| Detection accuracy | ≥99% | Communication distance | ≤300m（CAT5） |
| Power consumption | <1W | Supply distance | ≤150m（CAT5） |
