| Color: | Silver+black | Product Name: | Parking Boom Barrier Gate |
|---|---|---|---|
| Application: | Parking Lot,school,cinema,Over-sized Traffic Flow Area,hospital | Warranty: | 1 Year |
| Boom Length: | Max 6M (customized) | Speed: | 1s,3s,6s |
| Usage: | Parking Lots/toll Gate/high Way/goods Yard/railway Crossing | Protection Class: | IP55 |
| Voltage: | 220V(110V) AC 50HZ | Operating Temperature: | -40℃-75℃ |
| Highlight: | parking barrier gate, road barrier gate | ||
Straight Fence Arm Car Barrier Gate / Parking Lot Lift Gate AC220V / AC110V
Brief Introduction:
Shenzhen Door barrier gate DRDZ02 uses the latest mold designing technology, dia-casting manufacturing technology. So the quality is reliable. And the mechanism uses gear worm and crank link structure, which make the boom operate quickly and steadily. And the maintenance will be easy and convenient.
Parameter:
| Size of chassis | L340*W305*H1050mm |
| Voltage | AC110V/AC220V |
| Motor Wattage | 120W |
| Arm to ground | 0.85M |
| Arm opening time | 6s, 3s, 1s optional |
| Arm length | Straight arm length within 6m |
| Folding arm length | within 4.5m |
| Two-fence arm length | within 4.5m |
| Three-fence arm length | within 4m |
| Working temperature | -20℃-+65℃ |
| Chassis Color | Silver-black(other colors can be customized) |

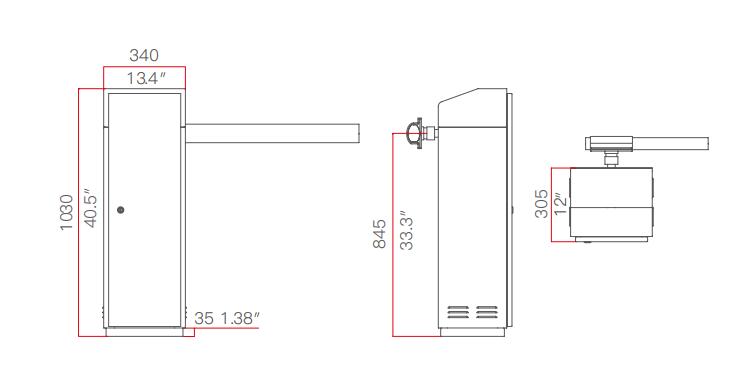

Installation Direction Definition:
When placing the order, please confirm “left-installed” or “right-installed”,
Figures as below:
Functions and Features:
- Advanced manual release, manually operate the arm quickly when power off, and automatic reset when power on.
- Boom running smoothly with a motor transmission of cranks and shafts.
- Remote control to operate the barrier gate.
- Auto-reverse when the boom meets obstruction, and auto-stop mode is optional.
- Infrared photocells interface is available. (need to install photocell device)2.6. Loop detector interface is available, to avoid hitting the car, and automatic boom falling down after car passing. (need to install loop detector)
- Integrated RS485 communication interface, to control the boom up, down and stop by computer.
- Interface for traffic light.
- Integrated counter function, can store the times of opening signal, deduct thetimes when car passing the loop, boom falling down after car passing through, well improve the traffic efficiency.
- Integrated with auto-closing function, coordinated with counter function, if the numbers of car passed less than the stored numbers, the boom will auto fall down by countdown, but will be new countdown if there is up signal or loop detector signal.
Application:
High-end communities
commercial buildings
government agencies
Airports
exhibition centers, etc.
