AC charging station

New Brain provides standard products for communication charging stations, as well as customization and OEM services

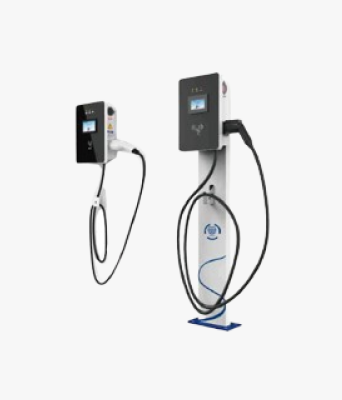

7kw column/wall mounted AC charging pile series(AC-L/B007A/B)

Size (wall mounted): 417 * 292 * 126 (mm)
Size (column type): 1432 * 350 * 246 (mm)

Applicable scenarios

The communication charging station occupies a small area and is easy to deploy, making it suitable for private villas, residential communities, commercial office buildings, urban complexes, and other parking lots or cities
Public charging stations in cities (such as private cars and small capacity passenger cars) that can charge slowly for a long time. 7Kw AC charging pile series suitable for AC charging piles
Used in new energy vehicle 4S stores, workshop debugging areas, new energy vehicle road rescue and other occasions that require frequent changes in charging station locations or temporary power replenishment.

Product features

v. Easy to operate: Swipe card to start charging directly/Scan phone 2Start charging with QR code
v. Charging function: automatic charging, quantitative, timed, and priced charging
v. Multi mode operation management: local self settlement operation, platform operation
v. backend interface: CAN interface RS485 interface GPRS/3G/4G wireless interface
v. Payment methods: mobile app payment, card swipe payment, WeChat/Alipay payment, etc
v. Standard: Compliant with the new national standard

technical parameter

model	Communication column	Rated output power	7Kw	Output current range	0-32A
Input frequency	50 ± 2% HZ	Protection level	IP54	Installation method	Wall mounted or column mounted
Input voltage range	Input/output AC220V ± 20%			communication interface	Ethernet/3G/4G
Leakage protection	Leakage current ≤ 30MA, during operation ≤ 0.1S		display screen	4.3 inch high brightness color touch screen
output voltage	/		Gun type	Single/Double Gun (optional)

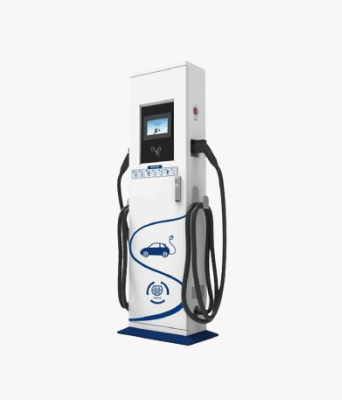

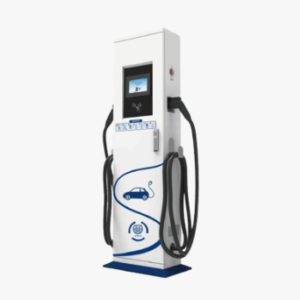

7kw/14kw/42kw vertical AC charging pile series(AC-L0xxA/B)

Size: 415 * 295 * 1400 (mm)

Applicable scenarios

High power AC charging stations have small footprint, fast deployment, and high charging power, making them suitable for urban use Dedicated charging stations (buses, taxis, official vehicles, sanitation vehicles, logistics vehicles, etc.), urban public transportationShared charging stations (private cars, commuters, buses), intercity highway charging stations, etc. require transportation
In the case of streaming charging.



Product features

v. Easy to operate: Swipe card to start charging directly/Scan QR code on your phone to start charging
v. Charging function: automatic charging, quantitative, timed, and priced charging
v. Multi mode operation management: local self settlement operation, platform operation
v. Backend interface: CAN interface RS485 interface GPRS/3G/4G wireless interface
v. Payment method: mobile APP payment, card payment, WeChat/Alipay payment, etc
v. Standard: Compliant with the new national standard



Technical parameter

model	Communication pile	Rated output power	7Kw/14Kw/42Kw	Output current range	0-32A (single-phase)/0-63 (three-phase)
Input frequency	50/60 (± 2%) Hz	Protection level	IP54	Installation method	vertical
Input/Input voltage range	Single phase AC220V ± 20%, three-phase AC380V ± 20%			communication interface	Ethernet/3G/4G
Leakage protection	Leakage current ≤ 30MA, during operation ≤ 0.1S		display screen	4.3 inch high brightness color touch screen
output voltage	/		Gun type	Single/Double Gun (optional)

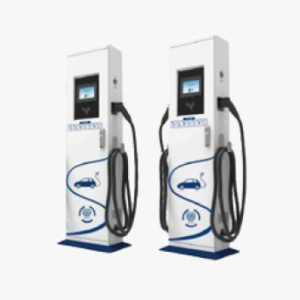

84kw vertical AC charging pile series(AC-L084B)

Size: 415 * 295 * 1400 (mm)

Applicable scenarios

High power AC charging stations have smaller footprint, faster deployment, and higher charging powerLarge, suitable for urban dedicated charging stations (buses, taxis, official business) Vehicles, sanitation vehicles, logistics vehicles, etc., urban public charging stations (private carsCommuters, buses, intercity highway charging stations, etc. require communication The occasion for charging.

Product features
v. Easy to operate: swipe the card to start charging directly/scan the QR code on the phone to startcharging
v. Charging function: automatic charging, quantitative, timed, and priced charging
v. Multi mode operation management: local self settlement operation
v. Backend interface: CAN interface RS485 interface GPRS/3G/4G wireless interface
v. Payment methods: mobile app payment, card swipe payment, WeChat/Alipay payment, etc
v. Standard: Compliant with the new national standard



Technical parameter

model	Communication pile	Rated output power	40Kw * 2	Output current range	0-63A * 2
Input frequency	50/60 (± 2%) Hz	Protection level	IP54	Installation method	vertical
Input voltage range	Input/output AC380V ± 20%			communication interface	Ethernet/2G/3G/4G
Leakage protection	Leakage current ≤ 30MA, during operation ≤ 0.1S		display screen	4.3 inch high brightness color touch screen
output voltage	/		Gun type	suncha

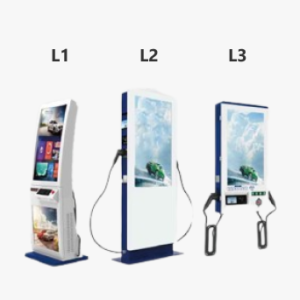

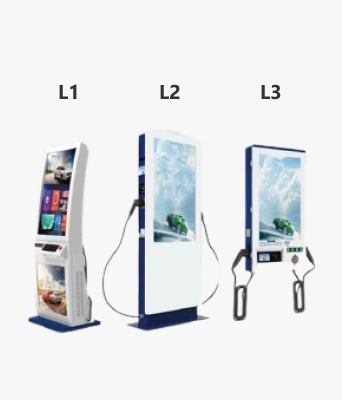

7Kw/14Kw AC Advertising Charging Station Series(AC-G-000A/B-L1/L2/L3)

L1 size: 520 * 520 * 1745 (mm)
L2 size: 862 * 340 * 1820 (mm)
L3 size: 580 * 165 * 1036 (mm)

Applicable scenarios

Communication advertising posts have good advertising benefits and are suitable for private villas, residential communities, commercial office buildings, urban complexes, and other parking lots or cities
Public charging stations (such as private cars and small capacity passenger cars) in cities with high traffic volume.



Product features

v. Easy to operate: Swipe card to directly start chargingScan QR code for electric/mobile phone to start charging
v. Charging function: automatic charging, quantitativeTimed and priced charging
v. Multi mode operation management: local self settlementOperations
v. Backend interface: CAN interface RS485Interface GPRS/3G/4G wireless interface
v. Payment method: mobile app payment, swipeCard payment, WeChat/Alipay payment, etc
v. Standard: Compliant with the new national standard



Features of advertising machines

v. High definition: Supports full HD 1080 * 1920P video playback and flash animation playback, compatible with mainstream video formats.
v. Fully functional: can be freely split screen; Synchronous playback of videos, images, and text; Timer on/off; Real time insertion. Easy to apply: plug in and apply,According to user needs, you can choose between standalone and online versions.
v. Network function: Network update playlist, allowing multiple terminal devices to connect to the network, controlled by a central server.



Technical parameter

model	Communication advertising pillars	Rated output power	7Kw/14Kw	Output current range	0-32A/32A * 2
Input frequency	50/60 (± 2%) Hz	Protection level	IP54	Installation method	Vertical/wall mounted
Input voltage range	Input AC220V ± 20%			communication interface	Ethernet
Leakage protection	Leakage current ≤ 30MA, during operation ≤ 0.1s		display screen	4.3 inch high brightness color touch screen
Advertising screen size	21.5 inches/32 inches/42 inches — (optional)		Gun type	Single/Double (optional)
